UPS

Online

High Frequency

Transformer-Less UPS 1/1Phase

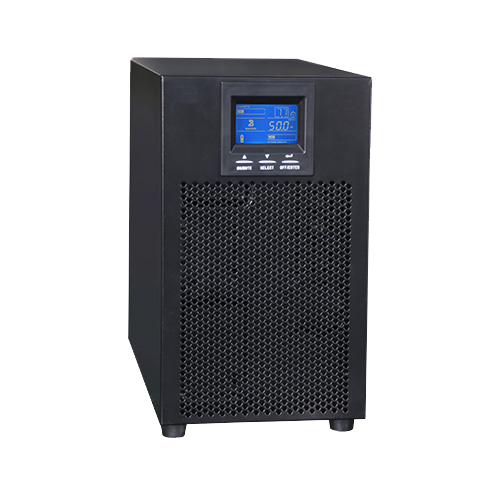

Cabinet power range 1 kVA, 2 kVA and 3 kVA.

The HS series is an intelligent pure sin wave UPS that use single phase in and single phase out. The capacity range from 1kVA up to 10kVA and incorporates Baykee’s advanced technology as well as the world’s most advanced 16 -bit high-speed CPU control technology and 40KHZ high-frequency technology.

The UPS is small in volume, lightweight, high efficiency, zero transfer time and pure sine wave output. The UPS series adopt the most advanced interface information operation technology. The operation status can be viewed directly from the LCD screen. With digital self-detecting and protection function, the long-distance monitoring reaches international advanced levels. The HS series is the power guard for your domestic and commercial electronic appliances.

Model HS	1KS(H)	1KSH	2KS(H)	2KSH	32KS(H)	3KSH
Tower Size (DWH) mm	282 * 145 * 220	310 * 438 * 88	397 * 145 * 220	410 * 438 * 88	421 * 190 * 318	630 * 438 * 88
Weight (Kg)	9.8	12	17	19	27.6	29.3
Power	1kVA / 800W	1kVA / 800W	2kVA / 1600W	2kVA / 1600W	3kVA / 2400W	3kVA / 2400W

Input
Voltage Range	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%	55 – 150VAC or 110 – 300VAC Load: 85 – 140VAC @ 50% or Load: 160 – 280VAC @ 100%
Current	5A max	5A max	10A max	10A max	15A max	15A max
Frequency Range	40Hz up to 70Hz	40Hz up to 70Hz	40Hz up to 70Hz	40Hz up to 70Hz	40Hz up to 70Hz	40Hz up to 70Hz
Power Factor	0.99	0.99	0.99	0.99	0.99	0.99

Battery
Standard Model	12V / 7AH	Depending on External Battery	12V / 7AH	Depending on External Battery	12V / 7AH	Depending on External Battery
Quantity	3	3	6	6	6	6
Charge Current	1.0A	1.0A	1.0A	1.0A	1.0A	1.0A
Charge Voltage	41VDC ±1%	41VDC ±1%	82.1VDC ±1%	82.1VDC ±1%	82.1VDC ±1%	82.1VDC ±1%
Charge Time	4 hours charging to 90%	Depending on External Battery	4 hours charging to 90%	Depending on External Battery	4 hours charging to 90%	Depending on External Battery
Backup Time	5 min	5 min	4 min	4 min	3 min	3 min

NOTE: Subject to changes without further notice!

Transformer-Less UPS 1/1Phase

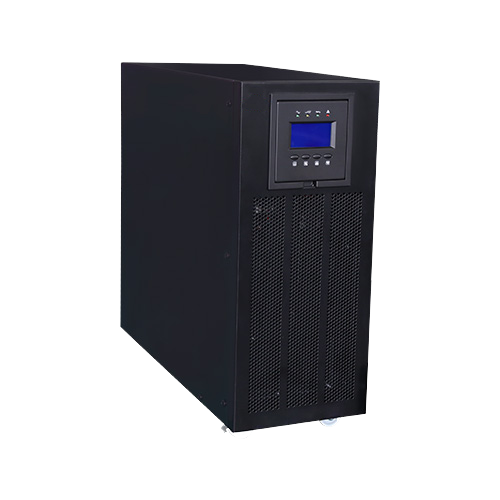

Cabinet power range 6 kVA and 10 kVA.

Model HS	6KS / 6KH	10KS / 10KH
Capacity	6kVA	10kVA
Power Watt	4800W	8000W
Phase	Single Phase Input / Single Phase Output (1/1P)	Single Phase Input / Single Phase Output (1/1P)

Input
Voltage Range	0% load, 120VAC up to 275VAC 50% load, 150VAC up to 275VAC 100% load, 190VAC up to 275VAC	0% load, 120VAC up to 275VAC 50% load, 150VAC up to 275VAC 100% load, 190VAC up to 275VAC
Frequency Range	46 – 54Hz or 56 – 64Hz	46 – 54Hz or 56 – 64Hz
Power Factor	0.99	0.99

Output
Output Voltage	220VAC ±1% (Battery Mode)	220VAC ±1% (Battery Mode)
Frequency Range	47 up to 53Hz or 57 up to 63Hz (Synchronized Range) 50/60Hz±0.3Hz (Battery Mode)	47 up to 53Hz or 57 up to 63Hz (Synchronized Range) 50/60Hz±0.3Hz (Battery Mode)
Output Power Factor	0.8	0.8
Crest Factor	3:1	3:1
Harmonic Distortion	Less than 2% (Linear Load)	Less than 2% (Linear Load)
Transfer Time	AC-DC: 0ms Inverter to Bypass: 4ms (Typical)	AC-DC: 0ms Inverter to Bypass: 4ms (Typical)
Waveform	Pure Sine Wave	Pure Sine Wave
Overload Capacity	105-125%, Transfer to Bypass after 1min 125-135%, Transfer to Bypass after 30s and disconnect output after 1min Greater than 135%, Transfer to Bypass after 0.5s	105-125%, Transfer to Bypass after 1min 125-135%, Transfer to Bypass after 30s and disconnect output after 1min Greater than 135%, Transfer to Bypass after 0.5s

EFFICIENCY
AC Mode	89%	89%
Battery Mode	88%	88%
DC Voltage	192VDC	192VDC

Standard
Inbuilt Battery Capacity	12V7Ah	12V7Ah	12V9Ah	12V9Ah
Quantity	16	16	16	16
Charge Time	7 hours charging to 90%	7 hours charging to 90%	9hours charging to 90%	9hours charging to 90%
Max. Charge Current	1.0A	1.0A	1.0A	1.0A
Charge Voltage	219.2VDC ±1%	219.2VDC ±1%	219.2VDC ±1%	219.2VDC ±1%

Long Time
Inbuilt Battery Capacity	Depending on External Battery	Depending on External Battery	Depending on External Battery	Depending on External Battery
Quantity	Depending on External Battery	Depending on External Battery	Depending on External Battery	Depending on External Battery
Max. Charge Current	1.0A / 2.0A / 4.0A / 6.0A	1.0A / 2.0A / 4.0A / 6.0A	1.0A / 2.0A / 4.0A / 6.0A	1.0A / 2.0A / 4.0A / 6.0A
Charge Voltage	219.2VDC ±1%	219.2VDC ±1%	219.2VDC ±1%	219.2VDC ±1%

DISPLAY
LCD or LED	Load, Battery Capacity, AC Mains Mode, Battery Mode, Bypass Mode, Fault Indicator	Load, Battery Capacity, AC Mains Mode, Battery Mode, Bypass Mode, Fault Indicator

ALARM VOICE
Battery Mode	Ring one time per 4 seconds	Ring one time per 4 seconds
Battery Low Capacity	Ring one time per 1 seconds	Ring one time per 1 seconds
Overload	Ring one time per 0.5 second	Ring one time per 0.5 second
Faults	Continues ringing	Continues ringing

PHYSICAL PERFORMANCE

Model	Standard
	Tower Size (DWH) mm	248 * 520 * 616	248 * 520 * 616	248 * 520 * 616	248 * 520 * 616
	Weight (Kg)	57	57	58.5	58.5

Model	Long Time
	Tower Size (DWH) mm	240 * 520 * 460	240 * 520 * 460	240 * 520 * 460	240 * 520 * 460
	Weight (Kg)	19.5	19.5	21.5	21.5

Rack-mounted Size (DWH) mm	484 * 647 * 130	484 * 647 * 130

ENVIRONMENT
Humidity	20 – 90% RH @ 0 – 40℃ (Non-condensing)	20 – 90% RH @ 0 – 40℃ (Non-condensing)
Noise	Less than 55dB @ 1M	Less than 55dB @ 1M

CONTROL MANAGEMENT
Smart RS232 (Optional USB)	Support Windows 2000 / 2003 / XP / Vista / 2008 / 7, Linux, Unix	Support Windows 2000 / 2003 / XP / Vista / 2008 / 7, Linux, Unix
Optional SNMP	Support SNMP Card for Remote Control	Support SNMP Card for Remote Control

NOTE: Subject to changes without further notice!

Transformer-Less UPS 3/1Phase

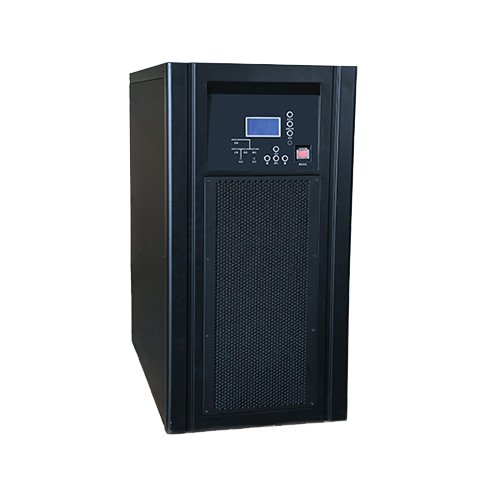

Cabinet power range 10 kVA, 15 kVA and 20 kVA.

Model HTS	10KH	15KH	20KH
Capacity	10kVA	15kVA	20kVA
Power Watt	800W	1200W
Phase	Three Phase Input / Single Phase Output (3/1P)	Three Phase Input / Single Phase Output (3/1P)	Three Phase Input / Single Phase Output (3/1P)

Input
Voltage Range	0% load, 220VAC up to 478VAC 50% load, 270VAC up to 478VAC 100% load, 340VAC up to 478VAC	0% load, 220VAC up to 478VAC 50% load, 270VAC up to 478VAC 100% load, 340VAC up to 478VAC	0% load, 220VAC up to 478VAC 50% load, 270VAC up to 478VAC 100% load, 340VAC up to 478VAC
Frequency Range	46 – 54Hz or 56 – 64Hz	46 – 54Hz or 56 – 64Hz	46 – 54Hz or 56 – 64Hz
Power Factor	0.95	0.95	0.95

Output
Output Voltage	220VAC ±1% (Battery Mode)	220VAC ±1% (Battery Mode)	220VAC ±1% (Battery Mode)
Frequency Range	47 up to 53Hz or 57 up to 63Hz (Synchronized Range) 50/60Hz±0.3Hz (Battery Mode)	47 up to 53Hz or 57 up to 63Hz (Synchronized Range) 50/60Hz±0.3Hz (Battery Mode)	47 up to 53Hz or 57 up to 63Hz (Synchronized Range) 50/60Hz±0.3Hz (Battery Mode)
Output Power Factor	0.8	0.8	0.8
Crest Factor	3:1	3:1	3:1
Harmonic Distortion	Less than 2% (Linear Load)	Less than 2% (Linear Load)	Less than 2% (Linear Load)
Transfer Time	AC-DC: 0ms Inverter to Bypass: 4ms (Typical)	AC-DC: 0ms Inverter to Bypass: 4ms (Typical)	AC-DC: 0ms Inverter to Bypass: 4ms (Typical)
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Overload Capacity	105-125%, Transfer to Bypass after 1min 125-135%, Transfer to Bypass after 30s and disconnect output after 1min Greater than 135%, Transfer to Bypass after 0.5s	105-125%, Transfer to Bypass after 1min 125-135%, Transfer to Bypass after 30s and disconnect output after 1min Greater than 135%, Transfer to Bypass after 0.5s	105-125%, Transfer to Bypass after 1min 125-135%, Transfer to Bypass after 30s and disconnect output after 1min Greater than 135%, Transfer to Bypass after 0.5s

EFFICIENCY
AC Mode	89%	89%	89%
Battery Mode	88%	88%	88%
DC Voltage	192VDC	192VDC	192VDC

Model Long Time
Inbuilt Battery Capacity	Depending on External Battery	Depending on External Battery	Depending on External Battery
Quantity	Depending on External Battery	Depending on External Battery	Depending on External Battery
Max. Charge Current	1.0A / 2.0A / 4.0A / 6.0A	1.0A / 2.0A / 4.0A / 6.0A	1.0A / 2.0A / 4.0A / 6.0A
Charge Voltage	219.2VDC ±1%	219.2VDC ±1%	219.2VDC ±1%

DISPLAY
LCD or LED	Load, Battery Capacity, AC Mains Mode, Battery Mode, Bypass Mode, Fault Indicator	Load, Battery Capacity, AC Mains Mode, Battery Mode, Bypass Mode, Fault Indicator	Load, Battery Capacity, AC Mains Mode, Battery Mode, Bypass Mode, Fault Indicator

ALARM VOICE
Battery Mode	Ring one time per 4 seconds	Ring one time per 4 seconds	Ring one time per 4 seconds
Battery Low Capacity	Ring one time per 1 seconds	Ring one time per 1 seconds	Ring one time per 1 seconds
Overload	Ring one time per 0.5 second	Ring one time per 0.5 second	Ring one time per 0.5 second
Faults	Continues ringing	Continues ringing	Continues ringing

PHYSICAL PERFORMANCE

Model Long Time
Tower Size (DWH) mm	240 * 520 * 460	240 * 520 * 460	240 * 520 * 460
Weight (Kg)	28.5	36.5	36.5

ENVIRONMENT
Humidity	20 – 90% RH @ 0 – 40℃ (Non-condensing)	20 – 90% RH @ 0 – 40℃ (Non-condensing)	20 – 90% RH @ 0 – 40℃ (Non-condensing)
Noise	Less than 58dB @ 1M	Less than 58dB @ 1M	Less than 58dB @ 1M

CONTROL MANAGEMENT
Smart RS232 (Optional USB)	Support Windows 2000 / 2003 / XP / Vista / 2008 / 7, Linux, Unix	Support Windows 2000 / 2003 / XP / Vista / 2008 / 7, Linux, Unix	Support Windows 2000 / 2003 / XP / Vista / 2008 / 7, Linux, Unix
Optional SNMP	Support SNMP Card for Remote Control	Support SNMP Card for Remote Control	Support SNMP Card for Remote Control

NOTE: Subject to changes without further notice!

Transformer-Less UPS 3/1Phase

Cabinet power range 10 kVA – 200 kVA.

The HTT series 3 phase transformer-less online UPS, adopt double conversion online type, which is an optimum design for all power failure.

This design can effectively protect the loads from surges, meanwhile, ensure output stability, accuracy, reliable power to the loads. The product series adopt all digital control technology, can reach parallel redundancy function, to provide our customer more flexible, future expansion and safety guarantee.

Model	HTT – 10kVA	HTT – 15kVA	HTT – 20kVA	HTT – 30kVA	HTT – 40kVA	HTT – 60kVA
Capacity	10kVA	15kVA	20kVA	30kVA	40kVA	60kVA
Phase	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE
Voltage Range	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease
Frequency Range	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz
THDi	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)
Power Factor	0.995	0.995	0.995	0.995	0.995	0.995
Bypass Range	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)

Battery
Connection Type	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery
Rated Voltage	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized
Battery number	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)
Charging Current	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)

Output (Inverter)
Output voltage	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE
Voltage Regulation	Less than ±1%	Less than ±1%	Less than ±1%	Less than ±1%	Less than ±1%	Less than ±1%
Phase Lock Range	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)
Output Frequency	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)
Power factor	1	1	1	1	1	1
Crest factor	3:1	3:1	3:1	3:1	3:1	3:1
THDu	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)
Three Phase Voltage Unbalance Degree	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%
Dynamic Voltage Transient Range	Less than 3%	Less than 3%	Less than 3%	Less than 3%	Less than 3%	Less than 3%
Transient Recorery Time	0ms	0ms	0ms	0ms	0ms	0ms
Three Phase Voltage Deviation	Mains:0.4 Battery: 0.3	Mains:0.4 Battery: 0.3	Mains:0.4 Battery: 0.3	Mains:0.4 Battery: 0.3	Mains:0.4 Battery: 0.3	Mains:0.4 Battery: 0.3
Transfer Time	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms
Overload capacity	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)
System Efficiency	Greater than 96%	Greater than 96%	Greater than 96%	Greater than 96%	Greater than 96%	Greater than 95%
Environment Indicator
Noise	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control
Display	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED
Interface	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional
Operation Temperature	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%
IP class	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)
Physical Specifications
Cabinet size (W * D * H)	420 * 750 * 880	420 * 750 * 880	420 * 750 * 880	420 * 750 * 880	420 * 750 * 880	600 * 800 * 1250
Cabinet Weight Kg	70	70	75	80	85	210

NOTE: Subject to changes without further notice!

Model	HTT – 80kVA	HTT – 100kVA	HTT – 120kVA	HTT – 150kVA	HTT – 200kVA
Capacity	80kVA	100kVA	120kVA	150kVA	200kVA
Phase	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE	3 phase + N + PE
Voltage Range	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease	291 up to 492V (Line-line) full load; 200 up to 291V linearly decrease
Frequency Range	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz	35 up to 70Hz
THDi	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)	Less than 3% (Full linear load)
Power Factor	0.995	0.995	0.995	0.995	0.995
Bypass Range	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)	-10% up to 10% (Can be customized to -10% up to -30%, or 10% up to 20%)

Battery
Connection Type	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery	Positive series and negative series battery
Rated Voltage	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized	± 240VDC (Positive and negative each 20pcs * 12V series) Can customized
Battery number	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)	40pcs / set (Can be customized to 30 up to 50pcs / set)
Charging Current	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)	20% System power (battery capacity)

Output (Inverter)
Output voltage	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE	380VAC 3 phase + N + PE
Voltage Regulation	Less than ±1%	Less than ±1%	Less than ±1%	Less than ±1%	Less than ±1%
Phase Lock Range	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)	50 / 60Hz ±5Hz (self frequency 50 / 60Hz ±0.01Hz)
Output Frequency	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)	50 / 60Hz ±0.01 (Turn into mains frequency if phase locked)
Power factor	1	1	1	1	1
Crest factor	3:1	3:1	3:1	3:1	3:1
THDu	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)	THD less than 2.0% (Linear load) THD less than 3% (Non-linear load)
Three Phase Voltage Unbalance Degree	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%	Balance load: 0.5% 100% Unbalance load : 1%
Dynamic Voltage Transient Range	Less than 3%	Less than 3%	Less than 3%	Less than 3%	Less than 3%
Transient Recorery Time	0ms	0ms	0ms	0ms	0ms
Three Phase Voltage Deviation	Mains: 0.4 Battery: 0.3	Mains: 0.4 Battery: 0.3	Mains: 0.4 Battery: 0.3	Mains: 0.4 Battery: 0.3	Mains: 0.4 Battery: 0.3
Transfer Time	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms	Mains to battery: 0ms Inverter to bypass: 0ms
Overload capacity	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)	125% for 10min: 150% for 1min; Greater than 150% for 200ms (Linear load)
System Efficiency	Greater than 95%	Greater than 95%	Greater than 95%	Greater than 95%	Greater than 95%
Environment Indicator
Noise	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control	Less than 65dB @100%load, Cooling fan adopt intelligent speed control
Display	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED	Touch screen LCD+LED
Interface	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional	Standard: RS232, RS485, Dry contacts, SNMP card optional
Operation Temperature	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%	Temperature: -10C up to 40C; Humidity 0% up to 98%; Storage temperature -25C up to 75C Altitude (m): less than 1000, 1000m – 2000m above every 100m reduce 1%
IP class	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)	IP30 (Removable dust filter)
Physical Specifications
Cabinet size (W * D * H)	600 * 800 * 1250	600 * 800 * 1250	600 * 800 * 1250	600 * 1100 * 2000	600 * 1100 * 2000
Cabinet Weight Kg	230	235	250	415	460

NOTE: Subject to changes without further notice!
