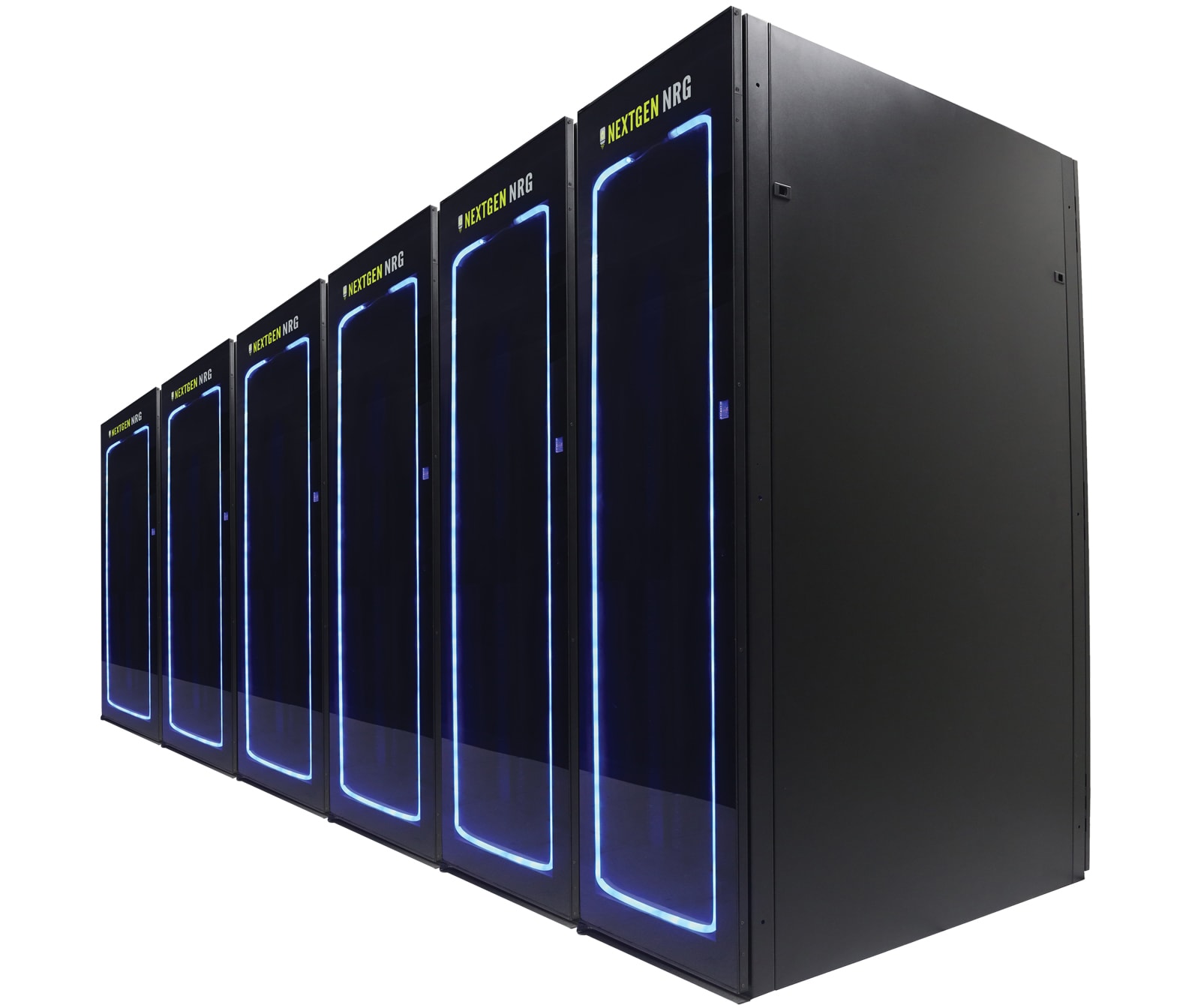

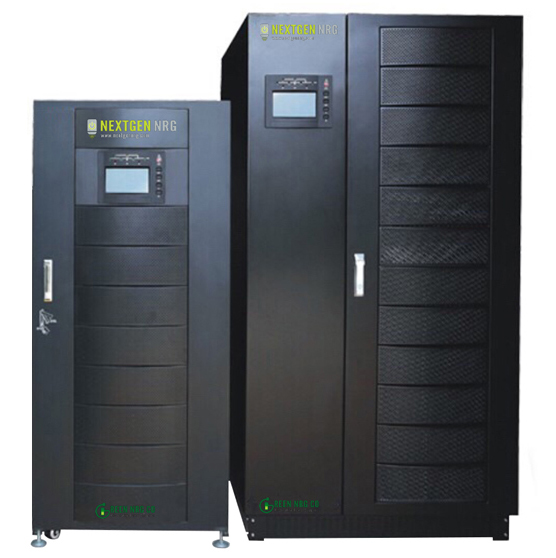

MPS 25kW－105kW (Commercial)
| Model | MPS33-25KW | MPS33-45KW | MPS33-65KW | MPS33-85KW |
|---|---|---|---|---|
| Power | 25kW | 45kW | 65kW | 85kW |
| Input Output | 3 phase +N+G 100A | 3 phase +N+G 185A | 3 phase +N+G 270A | 3 phase +N+G 350A |
| System voltage (VDC) | 384VDC | 384VDC | 384VDC | 384VDC |
| Solar energy input voltage range (VDC) | 450-650VDC | 450-650VDC | 450-650VDC | 450-650VDC |
| Maximum input current of solar energy (A) | 100A | 150A | 200A | 300A |
| Solar power (max) | 43kW | 65kW | 96kW | 131kW |
| Battery capacity (standby time 2 hours) | 200AH | 250AH | 250AH | 250AH |
| Wind turbine voltage grade | No | No | No | No |
| Maximum power of wind turbine | No | No | No | No |
| Mains input range | 230/400VAC±20% | 230/400VAC±20% | 230/400VAC±20% | 230/400VAC±20% |
| Input frequency range | 50Hz±5% | 50Hz±5% | 50Hz±5% | 50Hz±5% |
| Mains charging current | 15A (Max) | 20A (Max) | 30A (Max) | 40A (Max) |
| Inverter output voltage | 230/400VAC±2% | 230/400VAC±2% | 230/400VAC±2% | 230/400VAC±2% |
| Inverter output frequency | 50Hz±5% | 50Hz±5% | 50Hz±5% | 50Hz±5% |
| Inverter output waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
| Mains voltage stabilizing function | No | No | No | No |
| Working mode | Solar inverting output / battery inverting output / grid bypass output | Solar inverting output / battery inverting output / grid bypass output | Solar inverting output / battery inverting output / grid bypass output | Solar inverting output / battery inverting output / grid bypass output |
| Transfer time | ≤10ms | ≤10ms | ≤10ms | ≤10ms |
| Inverter output waveform distortion/THD | ≤5% | ≤5% | ≤5% | ≤5% |
| Transfer efficiency (linear load) | ≥88% | ≥88% | ≥89% | ≥90% |
